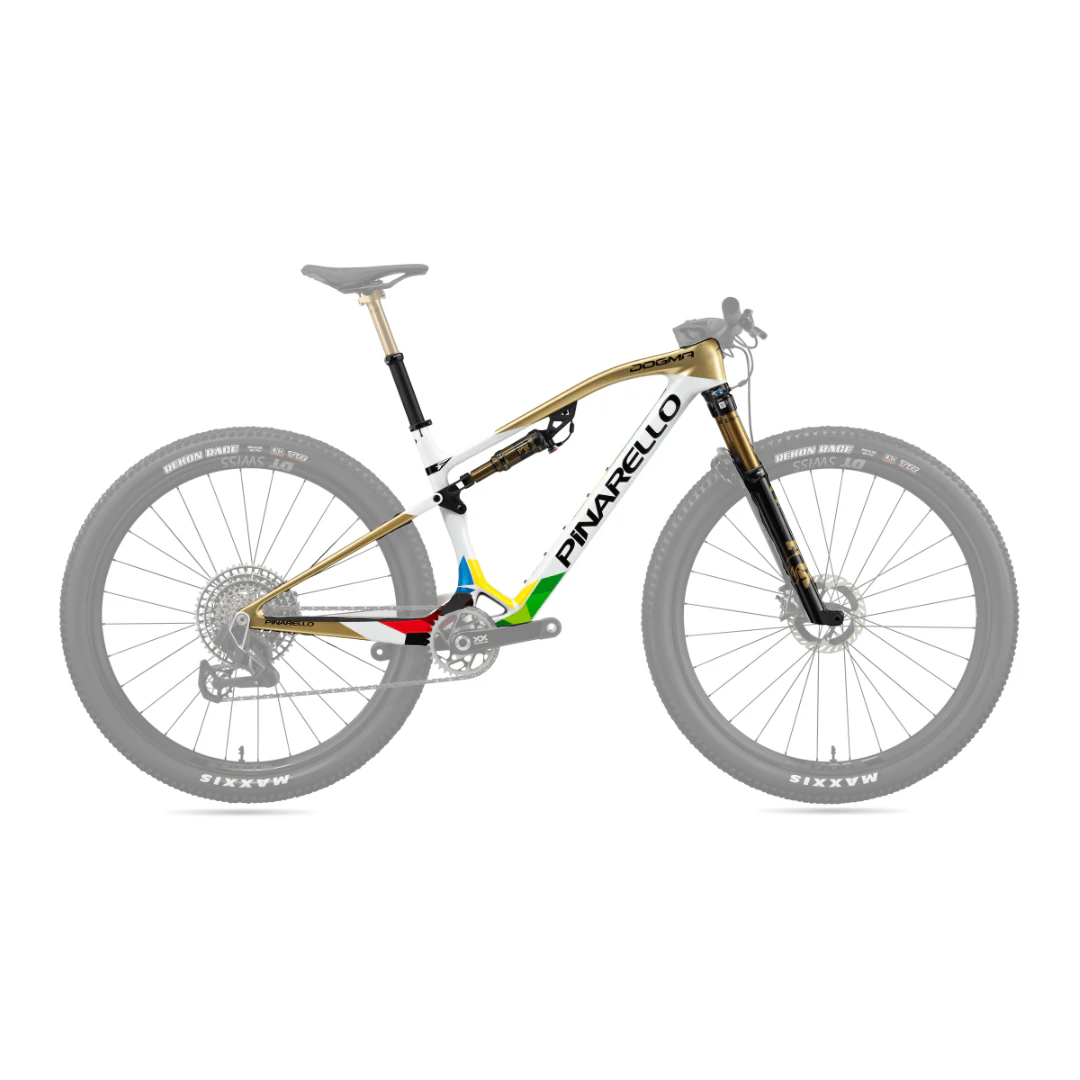

Technical Specification Dogma XC FS:
Frame Material: Toray M40 J
Rear Suspension: Fox Float SL Factory
Headset: TiCR Integrated
Seatpost: 30.9mm Required
Bottom Bracket Type: BSA 73mm Required
*Specifications are subject to change.
DOGMA XC גיאומטריה
| CF | SIZE | L | I | A | A1 | B | F | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 405 | S | 578 | 151.3 | 75.5 | 69.75 | 67.5 | 699.1 | 427.5 | 85 | 46 | 44 | 511 | 426.5 | 584.9 |
| 435 | M | 608 | 153 | 75.45 | 69.75 | 67.5 | 729.2 | 427.5 | 90 | 46 | 44 | 511 | 455 | 589.5 |
| 470 | L | 634 | 159 | 75.3 | 69.75 | 68 | 750 | 427.5 | 105 | 46 | 44 | 511 | 475 | 605.8 |
| 500 | XL | 659.1 | 164.1 | 75.15 | 69.75 | 68 | 775.6 | 427.5 | 120 | 46 | 44 | 511 | 495 | 619.7 |
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
