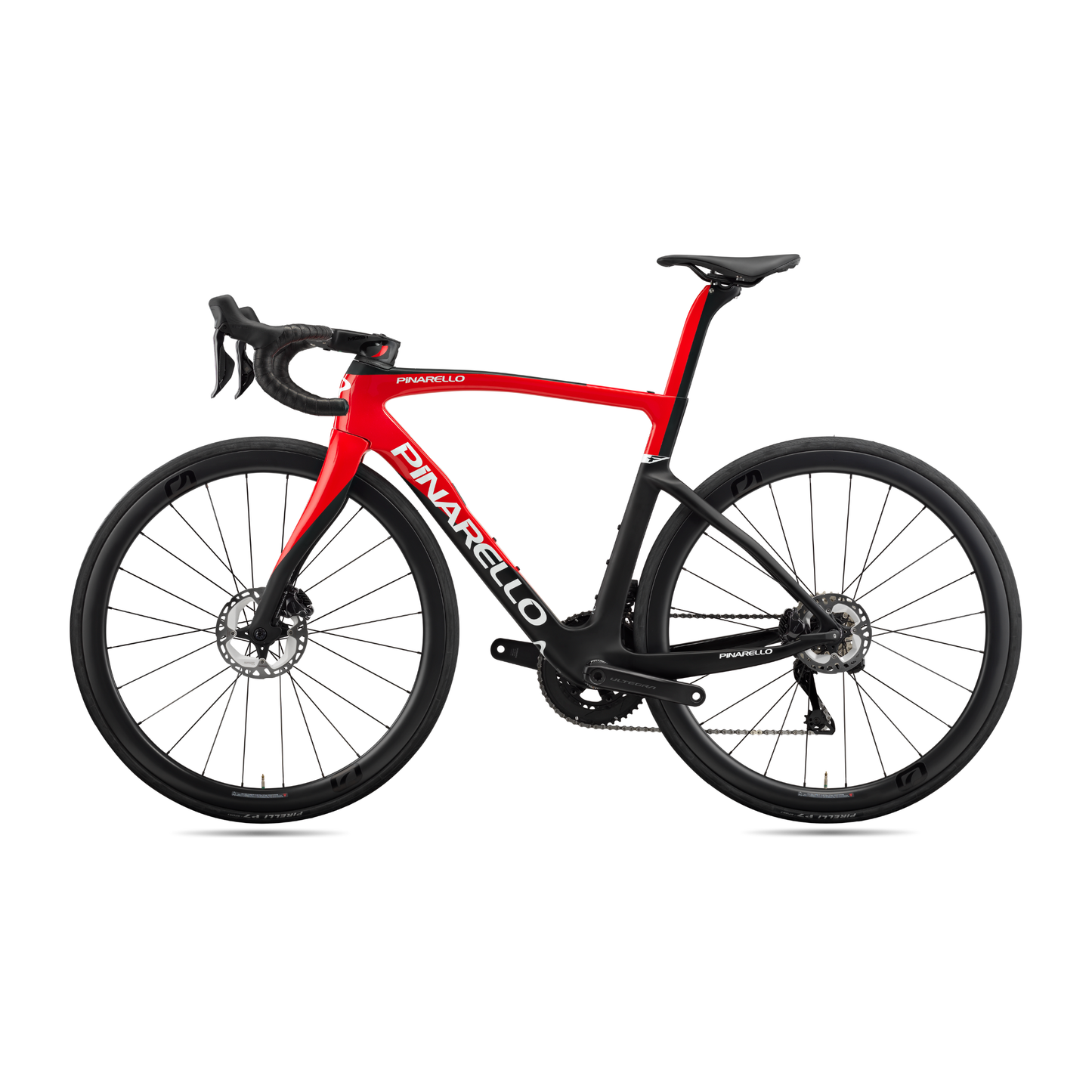

מפרט F7 ULTFAST

Technical Specification

Technical Specification:

• Frame: TorayCa T900 UD TiCR™ cable routing, Italian BB, UCI approved
• Crankset: Shimano Ultegra Di2 FD R8150 12S
• Front Derailleur: Shimano Ultegra Di2 FD R8150 12S
• Cassette: Shimano Ultegra Di2 FD R8150 12S
• Chain: Shimano Ultegra Di2 FD R8150 12S
• Front Brake Disc: Shimano Ultegra R8150, 2 pistons caliper, 160mm rotor
• Rear Brake Disc: Shimano Ultegra R8150, 2 pistons caliper, 160mm rotor
• Integrated Handlebar: MOST Talon Ultra Light
• Bar Tape: MOST bar tape
• Seatpost: Pinarello Aero Seatpost
• Seat Clamp: fsc frontal seat clamp
• Wheelset Disc: MOST Ultrafast 40*
• Axles Disc: Ultra Light Custom Axle 12x100 & 12x142, tool free removal

גאומטריה PINARELLO F

CE	CC	L	A [°]	B [°]	P	T	D	R	G	REACH	STACK
425	430	500	74.4	69.5	406	97	67	43	373	351.3	502.5
450	465	515	74.4	70.5	406	104	72	43	373	365.2	517.7
465	500	525	74	71.4	408	109	72	43	373	372.1	525.5
485	515	535	73.7	72	408	114	72	43	373	378.1	532.3
500	530	545	73.7	72.5	408	123	72	43	373	385.6	542.6
515	545	555	73.4	72.8	410	138	72	43	373	388.3	557.9
525	560	565	73	73.2	410	149.5	72	43	373	390.8	570.3
560	575	578	73	73.7	410	178	72	43	373	395.4	599.3
580	595	600	72.4	73.4	410	220	67	43	373	400.3	633.5



CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
