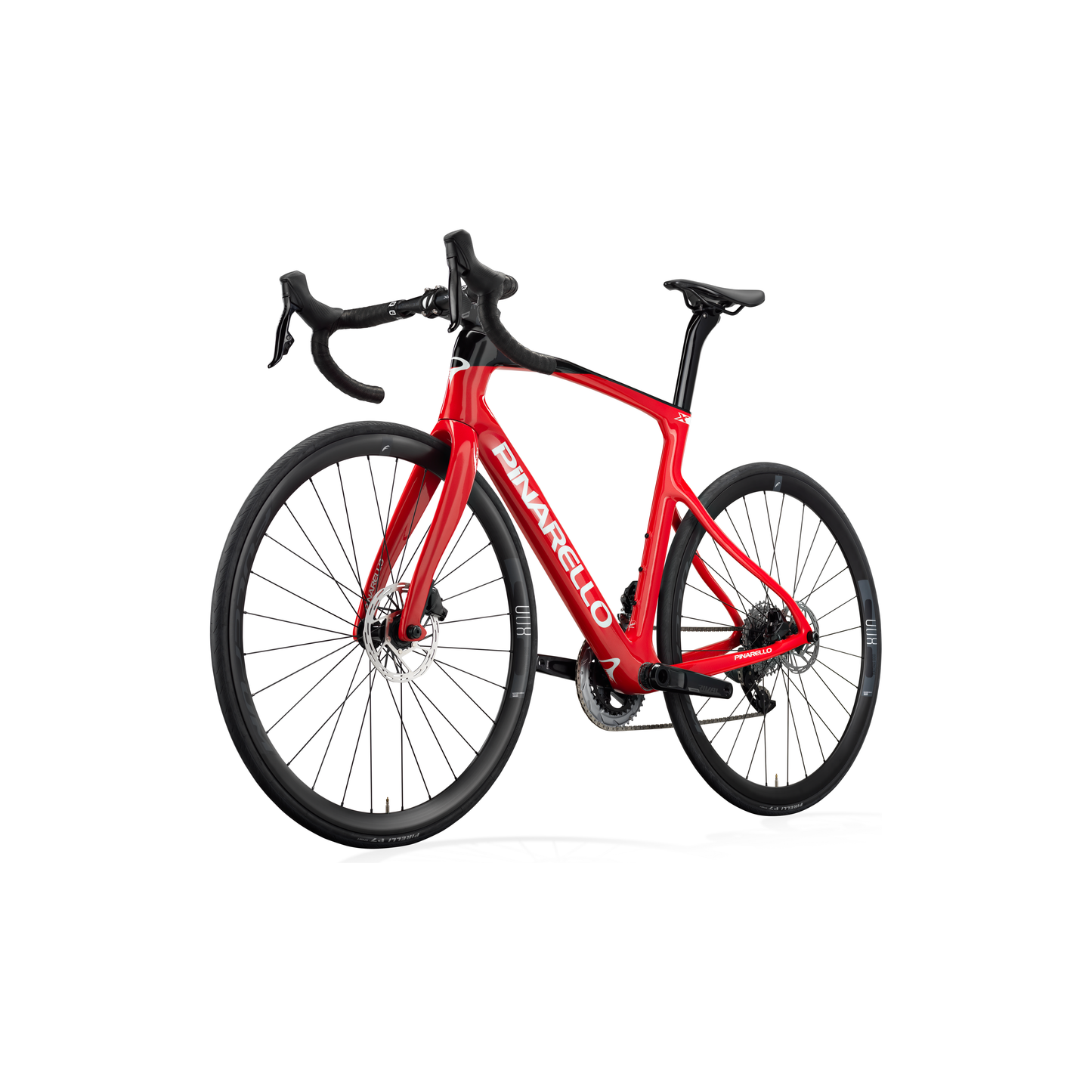

מפרט X3

Technical Specification

• Frame: Torayca T600 UD, internal cable routing, Italian BB, UCI approved
• Fork: ONDA carbon
• Stem: MOST Tiger aluminium aero TiCR
• Handlebar: MOST Jaguar aero XA TiCR
• Front Brake: Shimano 105 7170 hydraulic disc, 160mm rotor
• Rear Brake: Shimano 105 7170 hydraulic disc, 160mm rotor
• Brake Levers: Shimano 105 Di2 7170, hydraulic disc
• Front Derailleur: Shimano 105 Di2 7150, braze-on
• Rear Derailleur: Shimano 105 Di2 7151, 12-speed
• Shift Levers: Shimano 105 Di2 7170, hydraulic disc, 12-speed
• Chain: Shimano 105 7100, 12-speed
• Cassette: Shimano 105 7100, 12-speed, 11-34t
• Crankset: Shimano 105 7100, 50/34
• Front Wheel: Fulcrum 800 disc brake, 700c, 28h, tubeless-ready clincher
• Rear Wheel: Fulcrum 800 disc brake, 700c, 28h, tubeless-ready clincher
• Tires: Pirelli P7 Sport, clincher
• Saddle: MOST Lynx Ultra Superflow

Specifications are subject to change.

PINARELLO X גיאומטריה

CE	CC	L	A [°]	B [°]	P	T	D	R	G	REACH	STACK
425	430	492	75.25	70	422	123	67	52	375	341.9	527.5
450	460	509	74.5	70.5	422	128	72	52	375	352.1	539.2
470	490	525	74	71	422	140	72	52	375	361.9	552.4
495	515	536	73.75	71.5	422	149	72	47	375	368.5	564.4
510	530	545	73.5	72	422	159	72	47	375	372.5	575.8
525	545	555	73.25	72.25	422	171	72	47	375	376.7	588.2
540	560	565	73	72.5	422	185	72	47	375	380.2	602.4
560	580	577	72.75	72.5	422	209	67	47	375	384.1	620.3
590	600	590	72.5	72.5	422	230	67	47	375	388.1	640.4



CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
