מפרט X5 2026
Technical Specification
- Frame: TORAYCA T700 Carbon
- Fork: X-Series Onda Carbon
- Seatpost: Pinarello Aero
- Front Derailleur: Shimano 105 Di2 7150
- Rear Derailleur: Shimano 105 Di2 7150
- Crankset: Shimano 105 7100 50/34
- Brake Calipers: Shimano 105 7170 Hydraulic Disc
- Rotors: Shimano 160mm
- Shifters / Levers: Shimano 105 Di2 7170
- Cassette: Shimano 105 7100 12-speed 11/34
- Chain: Shimano 105 7100 12-speed
- Wheelset :MOST Ultrafast 45 Carbon
- Stem: Tiger Aero Alu TiCR
- Handlebar: MOST Jaguar XA TiCR
- Saddle: MOST Lynx Aircross
- Tires: Pirelli P7 Sport 35 black
Specifications are subject to change.

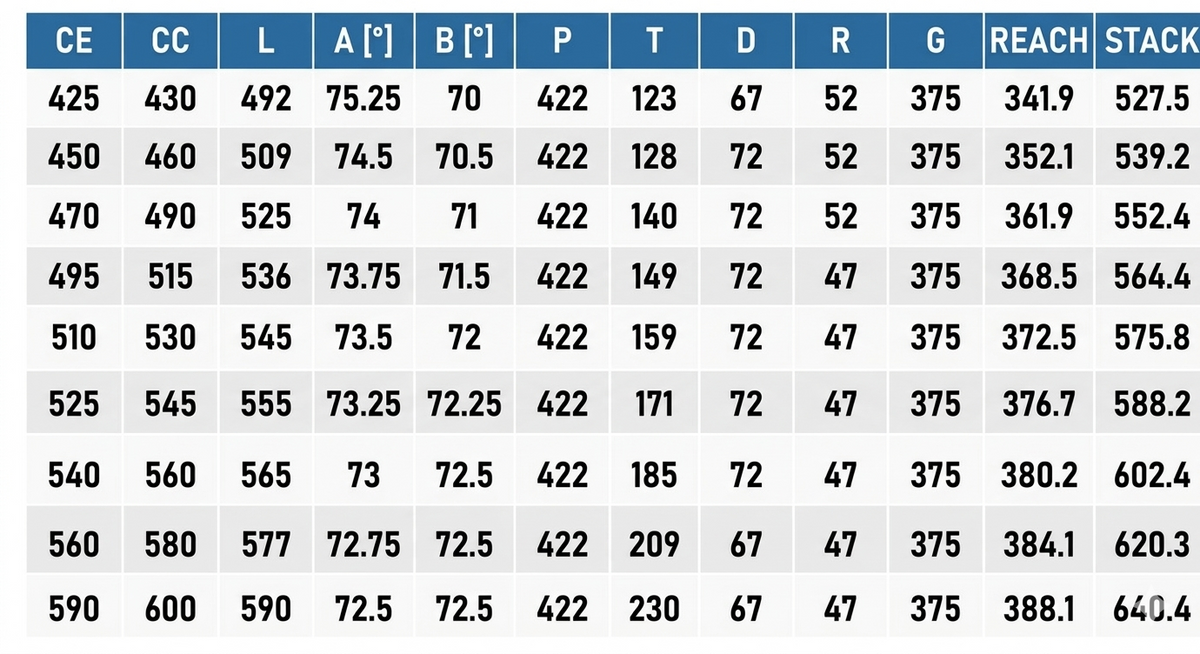

PINARELLO X גיאומטריה
| CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 430 | 492 | 75.25 | 70 | 422 | 123 | 67 | 52 | 375 | 341.9 | 527.5 |
| 450 | 460 | 509 | 74.5 | 70.5 | 422 | 128 | 72 | 52 | 375 | 352.1 | 539.2 |
| 470 | 490 | 525 | 74 | 71 | 422 | 140 | 72 | 52 | 375 | 361.9 | 552.4 |
| 495 | 515 | 536 | 73.75 | 71.5 | 422 | 149 | 72 | 47 | 375 | 368.5 | 564.4 |
| 510 | 530 | 545 | 73.5 | 72 | 422 | 159 | 72 | 47 | 375 | 372.5 | 575.8 |
| 525 | 545 | 555 | 73.25 | 72.25 | 422 | 171 | 72 | 47 | 375 | 376.7 | 588.2 |
| 540 | 560 | 565 | 73 | 72.5 | 422 | 185 | 72 | 47 | 375 | 380.2 | 602.4 |
| 560 | 580 | 577 | 72.75 | 72.5 | 422 | 209 | 67 | 47 | 375 | 384.1 | 620.3 |
| 590 | 600 | 590 | 72.5 | 72.5 | 422 | 230 | 67 | 47 | 375 | 388.1 | 640.4 |
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
