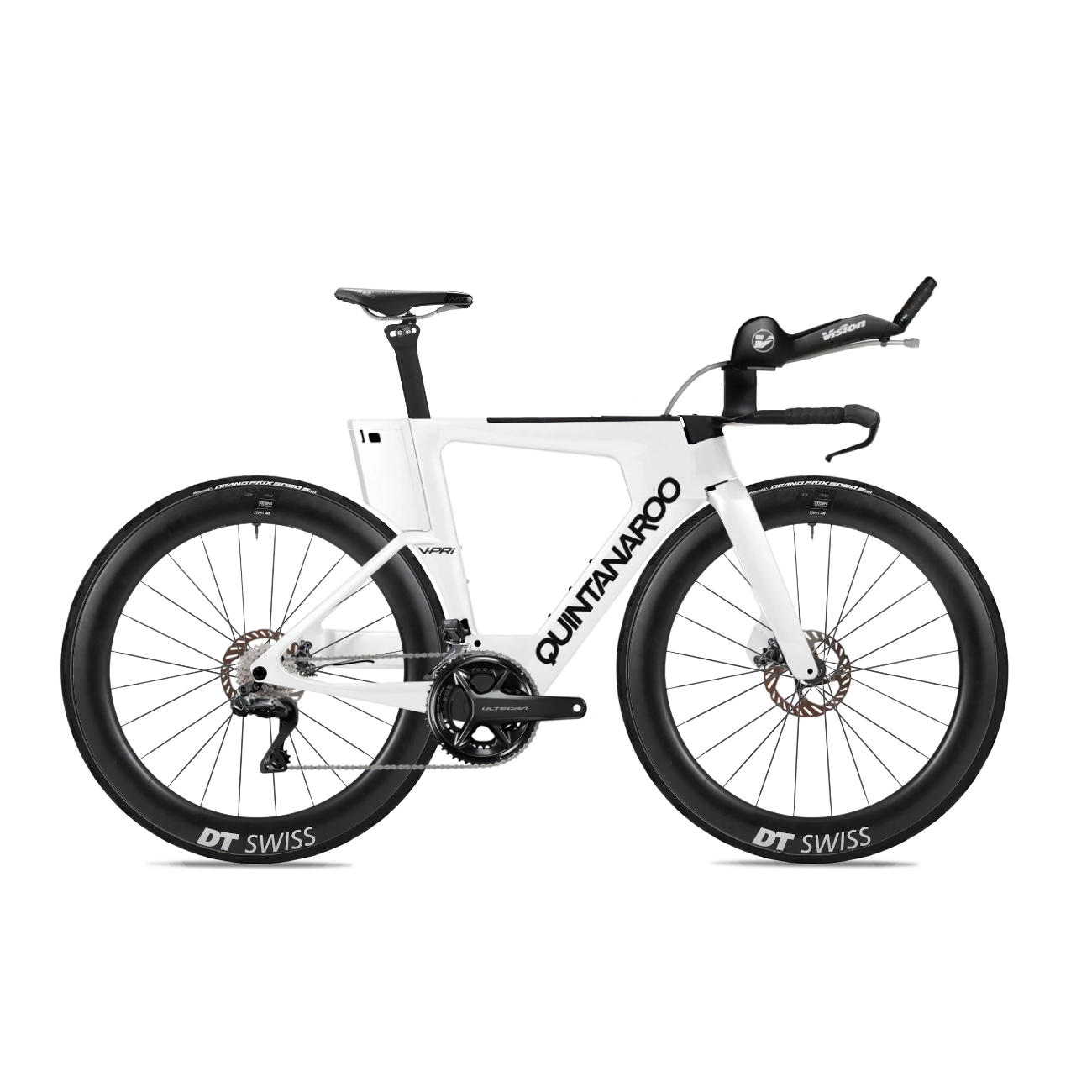

V-PRi מפרט

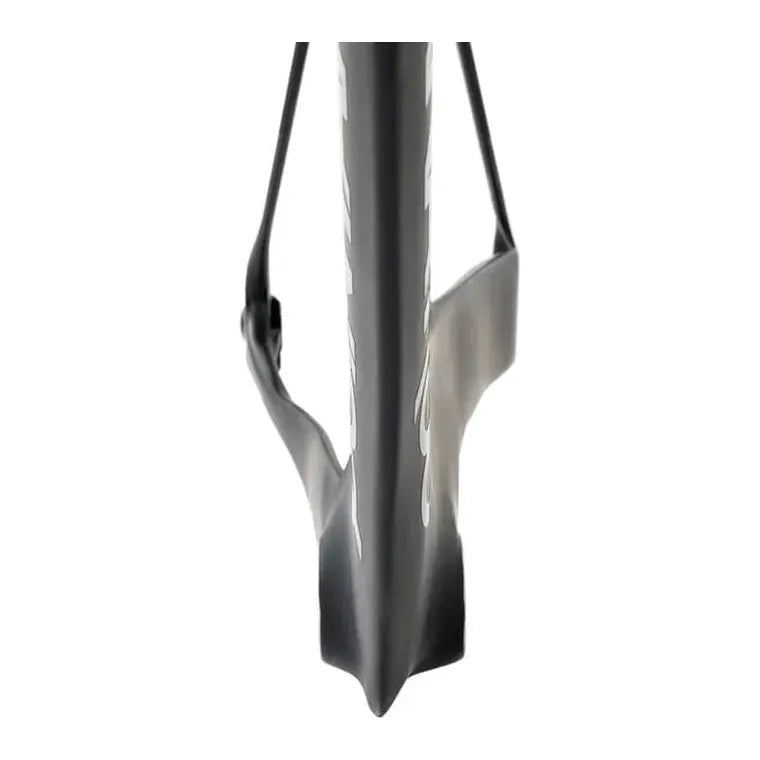

Fork : Deep Aero Fork

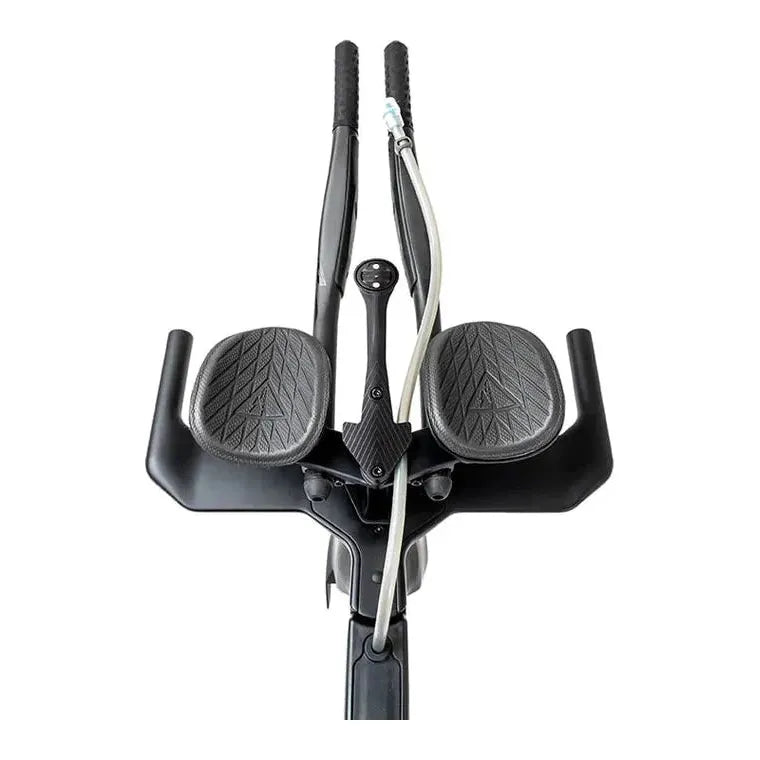

Aero Extensions: Vision TFE Pro Carbon
Seatpost : QR.SP - Short Post Aero Carbon
Saddle: Selle Italia Watt TI316 Gel Superflow
Shifters : Dura-Ace Di2 9160 12 spd
Front Derailleur : Ultegra Di2 8150 12 spd
Rear Derailleur : Ultegra Di2 8150 12 spd
with Ceramic Speed OSPW System
Brakes : Dura-Ace 9180 Hydraulic Disc
Disc Rotors : Shimano MT900 160mm
Crankset : Ultegra R8100 52/36 12 spd
with 4iii PRECISION 3+ Ultegra R8100 Single Sided Powermeter
Cassette : Ultegra R8100 11-30 12 spd
Chain : Shimano M8100
Bottom Bracket : T47 Ceramic Speed
Tires : Continental GP5000 TR 28c
Wheelset : DT Swiss ARC 1600 Dicut
Top Tube Nutrition FuelBayᵀᴹ
Top tube-integrated solid nutrition storage bay
גיאומטריה V-PRi
Crank Length |
Size S — 165mm | Size M — 165mm | Size L — 170mm |
|---|---|---|---|
| V-PRi GEOMETRY | S | M | L |
| Seat Tube | 50.5cm | 54.0 cm | 58.5 cm |
| Top Tube Length | 48.7cm | 51.5cm | 55cm |
| Head Tube Length | 6.5cm | 8.3cm | 12.6cm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Angle | 77/83 ° | 77/83 ° | 77/83 ° |
| Chainstay Length | 39.5cm | 39.5cm | 39.5cm |
| Wheelbase | 96.4cm | 99.4cm | 103.1cm |
| Standover Height | 76.3cm | 79.1cm | 83.3cm |
| Front Center | 58.1cm | 61cm | 64.8cm |
| BB Drop | 7.35cm | 7.35cm | 7.35cm |
| Wheelsize | 700c | 700c | 700c |
| Stack | 47.5cm | 49.5cm | 53.5cm |
| Reach | 39.5cm | 42cm | 44.3cm |
| Virtual Stack | 50cm | 52cm | 56cm |
| Virtual Reach | 38.7cm | 41cm | 43.5cm |
